High Resolution COB P1.25 LED Shelf Display For Supermarket 2880Hz Refresh Rate

Name: High Resolution COB P125 LED Shelf Display For Supermarket 2880Hz Refresh Rate
Brand: longrun
Price: 1 USD

Brand Name : longrun

Model Number : I-TANG

MOQ : 1 Piece

Price : Negotiable

Product name : P1.25 COB Shelf Display

Pixel Pitch : 1.25mm

Application : Supermarket, Retail Shops, Night Club, etc.

Module size : 150*56.25mm

Brightness(cd/sqm) : 600

LED chip : COB

Cabinet size : 300mm/600mm/900mm

Brightness : 500cd/sqm

Certificate : CE RoHS UL FCC Certifications

Display Function : Video

Screen Dimension : 300mm/600mm/900mm

Contact Now

High Resolution COB P1.25 LED Shelf Display For Supermarket 2880Hz Refresh Rate

COB LED Shelf Screen Sign is a new revolution for shelf rack display, by using a high-resolution P1.25 LED module, approve for a close video show on your shelf rack, that's the best way to show your products before someone making choice. It's capable of delivering dynamic pricing, promotion, product, and brand-related information on the shelf screen sign.

It's so simple to install and make connections, by revolutionary design with magnetic and shackle, free tool assembles, and change.

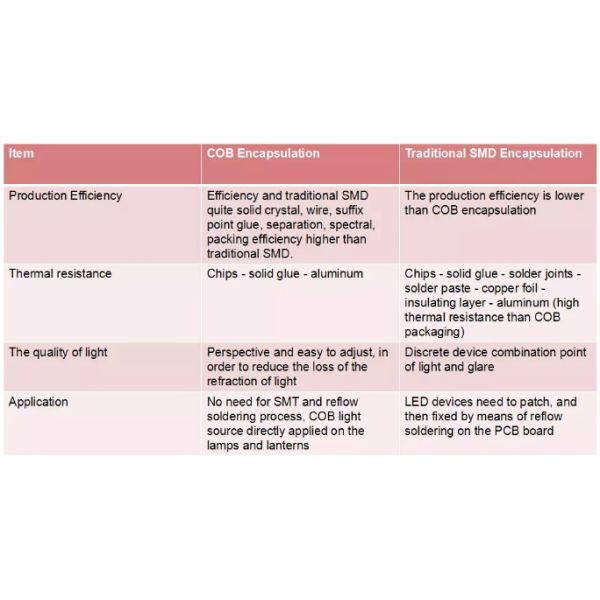

Product features:
1). Stronger protection: COB LED chips are welded on the PCB board directly, then do encapsulation. It has excellent protection capabilities.
2) Higher reliability and stability: COB technology has a simpler process on the material using and producing than SMD, so it has higher performance on heat dissipation to prolong life span.

3) Larger viewing angle: has a larger viewing angle and is easy to control the loss of light refraction.

Technical Parameters

Item	Parameters
Model	P1.25
Pixel Pitch(mm)	1.25
Physical Density (dot/sqm)	640,000
LED Configuration	1RGB
Module Size (mmxmm)	150*56.25
Module Resolution (PXxPX)	120*45
Scanning mode	1/45
Brightness(cd/sqm)	500
Grey Scale	16bit
Refresh Rate(Hz)	2880Hz
Panel Resolution(PXxPX)	240*45
Panel Max Power Consumption(w)	15
Panel Average Power Consumption(w)	5
Panel Size(mmxmm)	300*56.25
Panel Weight(kg)	0.35
Panel Thickness(mm)	20
Panel Material	Profile aluminum
Color(M)	16.7
Input Voltage	AC110V-220V +/-10%

Our advantages:

--2cm super slim thickness
--modular design to match the standard supermarket shelf
--optional panel size 300*56.25mm, 600mm*56.25mm or 900mm*56.25mm
--easy assemble
--support hot-plug
--support hook type installation
--quick delivery time 5-10 days

Detailed Images

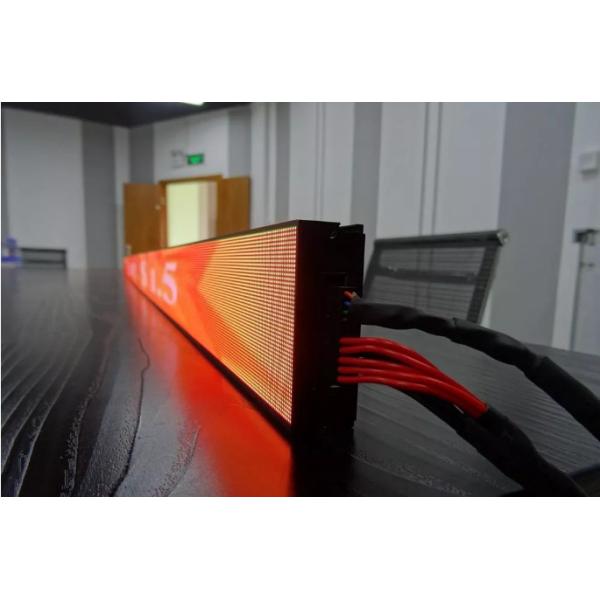

Single panel reference: 600mm(W)*56.25mm(H)
High Resolution COB P1.25 LED Shelf Display For Supermarket 2880Hz Refresh Rate

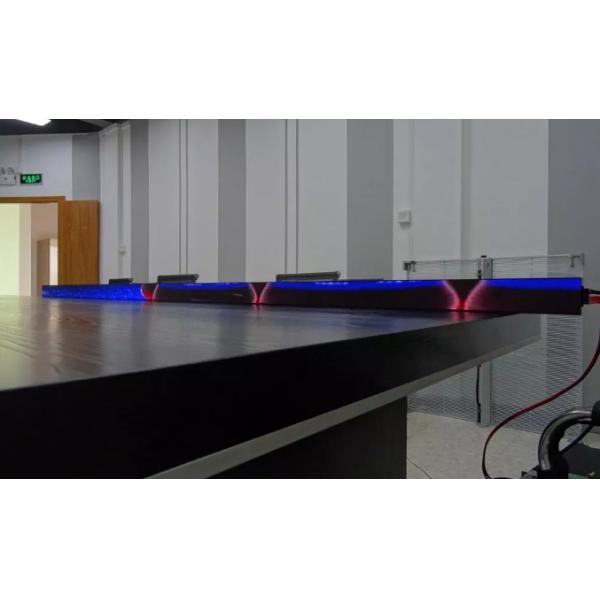

4 panel assembling reference: 2400mm(W)*56.25mm(H)

Easy assembling with screws

Support hot-plug

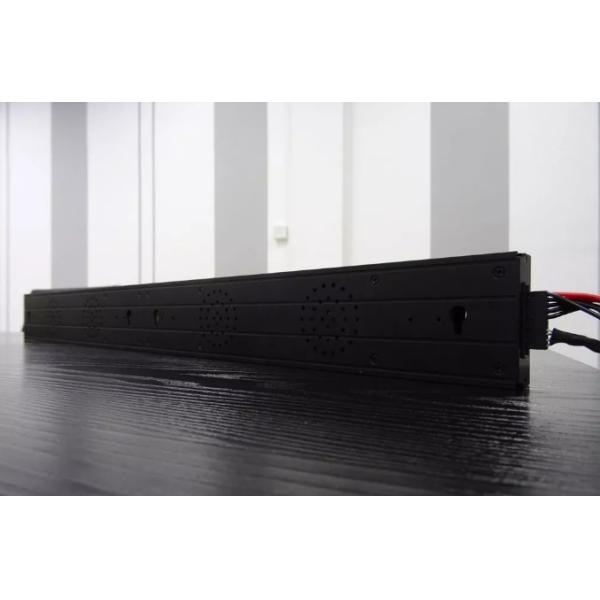

Support hook type installation

Packaging & Shipping

Carton
High Resolution COB P1.25 LED Shelf Display For Supermarket 2880Hz Refresh Rate

Trade Shows

High Resolution COB P1.25 LED Shelf Display For Supermarket 2880Hz Refresh Rate

Certifications

High Resolution COB P1.25 LED Shelf Display For Supermarket 2880Hz Refresh Rate

Advantages

High Resolution COB P1.25 LED Shelf Display For Supermarket 2880Hz Refresh Rate
